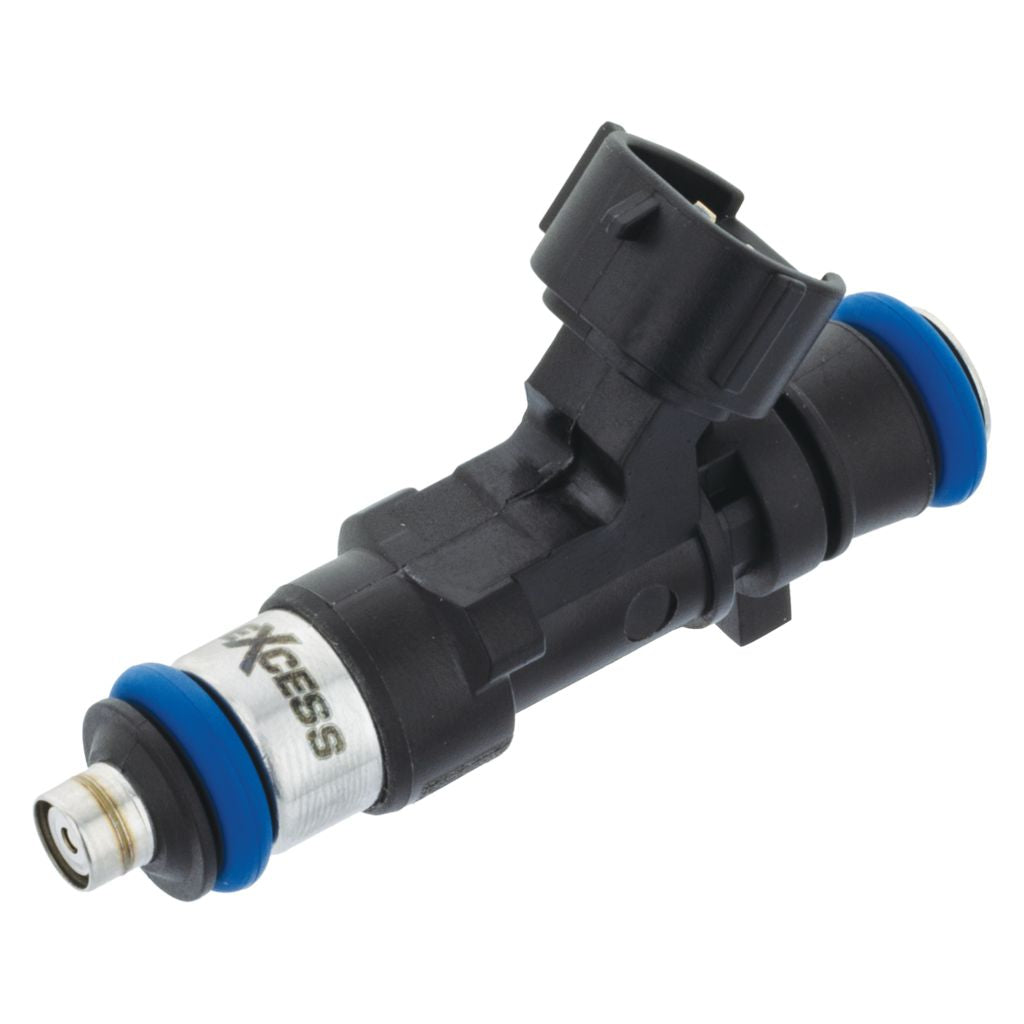

710cc GTR R35 VR38DETT Fuel Injectors
- Every set of Excess Injectors comes with eXact Match Data.
- Tune files available for 11 different ECU's.
- Each file is adjusted to how your set performed on the test bench
- No two data sets are the same
Lifetime Warranty
Stainless Steel Internals
Why Excess?
See for yourself
Tight Testing Controls
All Excess Injectors are tested on our custom built test bench to J1832 standards.
- Pressure is electronically controlled at 3 bar
- Temperature is controlled at 21°C
- Votage is controlled at 14V
Tightly Grouped Sets
We don't just dynamically flow test injectors we also measure the dead time of each injector. Every set is:- Dynamically flow matched within 1%
- Deadtime matched within 2%
Exact Match Data
Every set you buy comes with tuning data exactly matched to your set. It is based on how that set performed on the test bench. Saves dyno time tuning injectors and you get a perfect result every time.-
data formatted for 11 different ECU/software types
- no two tune files are the same
- tuning data is matched exactly to your set
How many points are tested?
-
over 6,500 flow points are tested and recorded on every injector.
-
over 265,000 measurements for flow, pressure, voltage etc are recorded for every injector
-
tuning data specific to your set is available for download to make an easy tune
All of these results are stored on our cloud server, you can log in to view the data specific to your set at any time.
Lifetime Guarantee
If an injector has an issue not related to contamination or damage from external forces we simply replace the injector for you. It's that easy.
We know exactly how your injector set should flow and what the deadtimes are because we store that information on the cloud server. We just replace the injector with another one that matches your injector set exactly.
Fuel Compatibility
All Fuel - stainless steel internals
Make
Nissan
Model
GTR R35 VR38DETT
Injector CC Rating
710cc
Testing Pressure (bar)
3
Coil Resistance
12 ohms

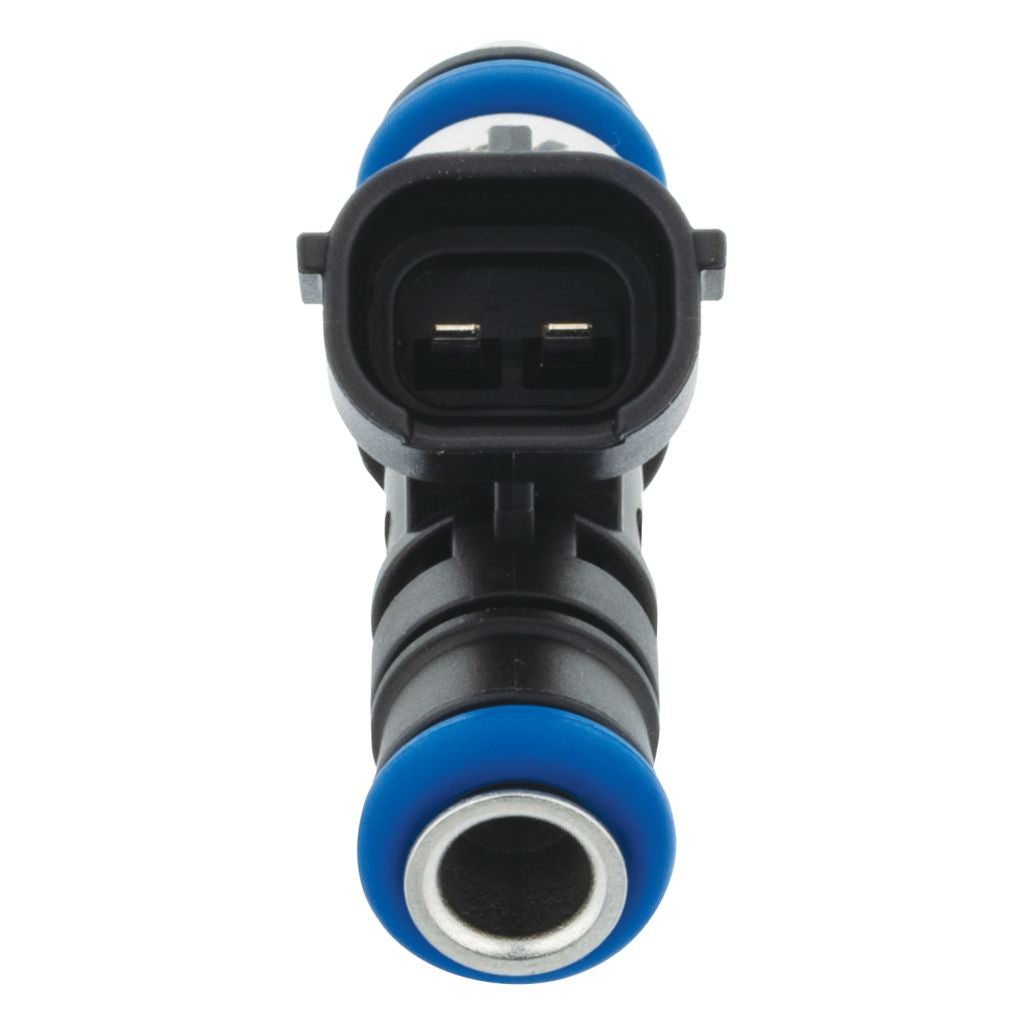

Injector Plug Style
Denso - Sumitomo
Internals
Stainless steel internals
Injector Height (O-Ring to O-Ring)
55mm - 2.17"
Top O-Ring Outside Diameter
14mm - 0.55"
Manifold O-Ring Outside Diameter
Quantity

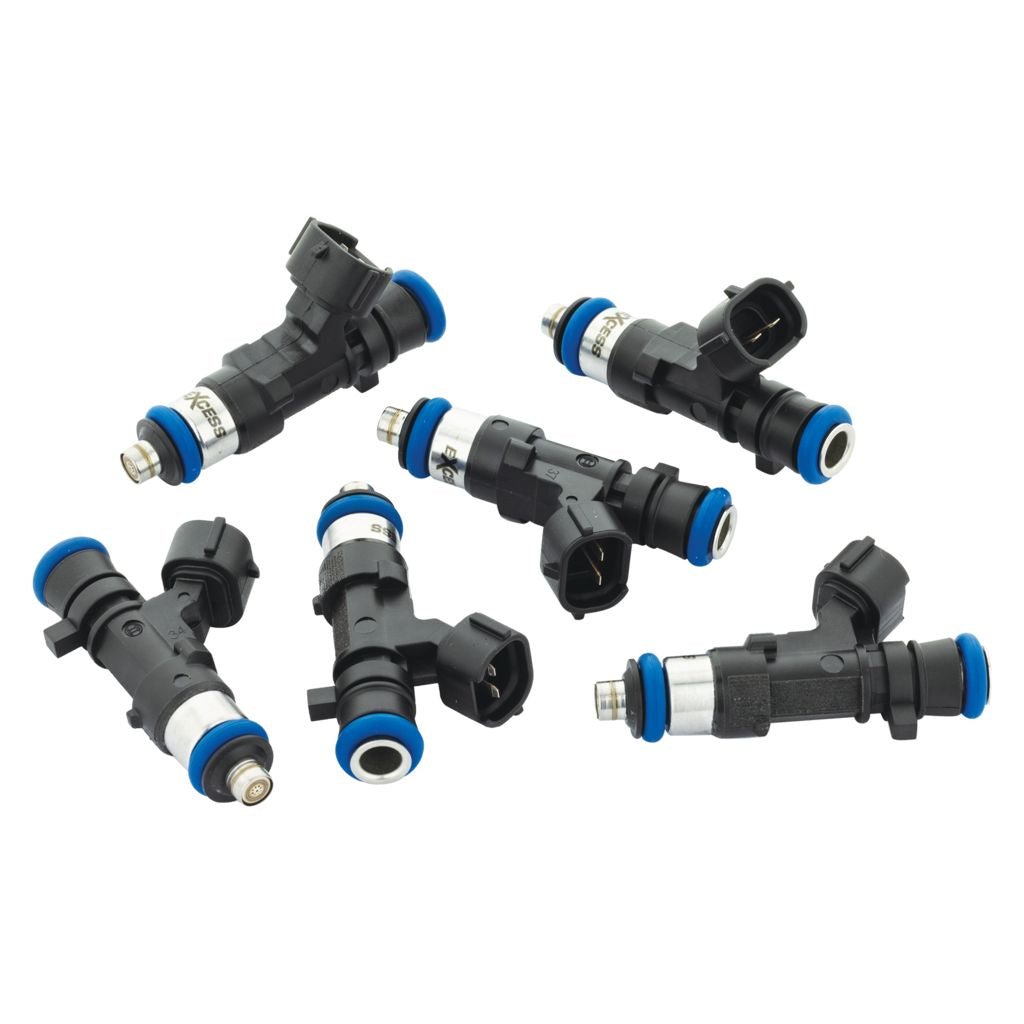

Sold as a set of 6
O-Rings Included
Yes
Wiring Harness Included
Not Required
Height Extensions Included
Not Required
Tuning Data Included
Yes - Exact Match Data
Access to Testing Data
Yes
