1000cc Cadillac CTS-V - LS2 Fuel Injectors
Low stock: 7 left
Couldn't load pickup availability
- Every set of Excess Injectors comes with eXact Match Data.
- Tune files available for 11 different ECU's.
- Each file is adjusted to how your set performed on the test bench
- No two data sets are the same
In Stock
Lifetime Warranty
Stainless Steel Internals



Stock injectors can limit your LS2 engine's performance, especially when upgrading with forced induction, high-performance camshafts, or E85 fuel. A 1000cc injector upgrade ensures:
✔ Better fuel delivery for high-performance builds
✔ More precise tuning and efficiency
✔ Support for E85, race fuel, and pump gas
Key Specifications
- Flow Rate: 1000cc
- Coil Resistance: 12 ohms
- Injector Plug Style: USCAR
- Injector Height: 55mm (O-Ring to O-Ring)
- Top O-Ring Diameter: 14mm

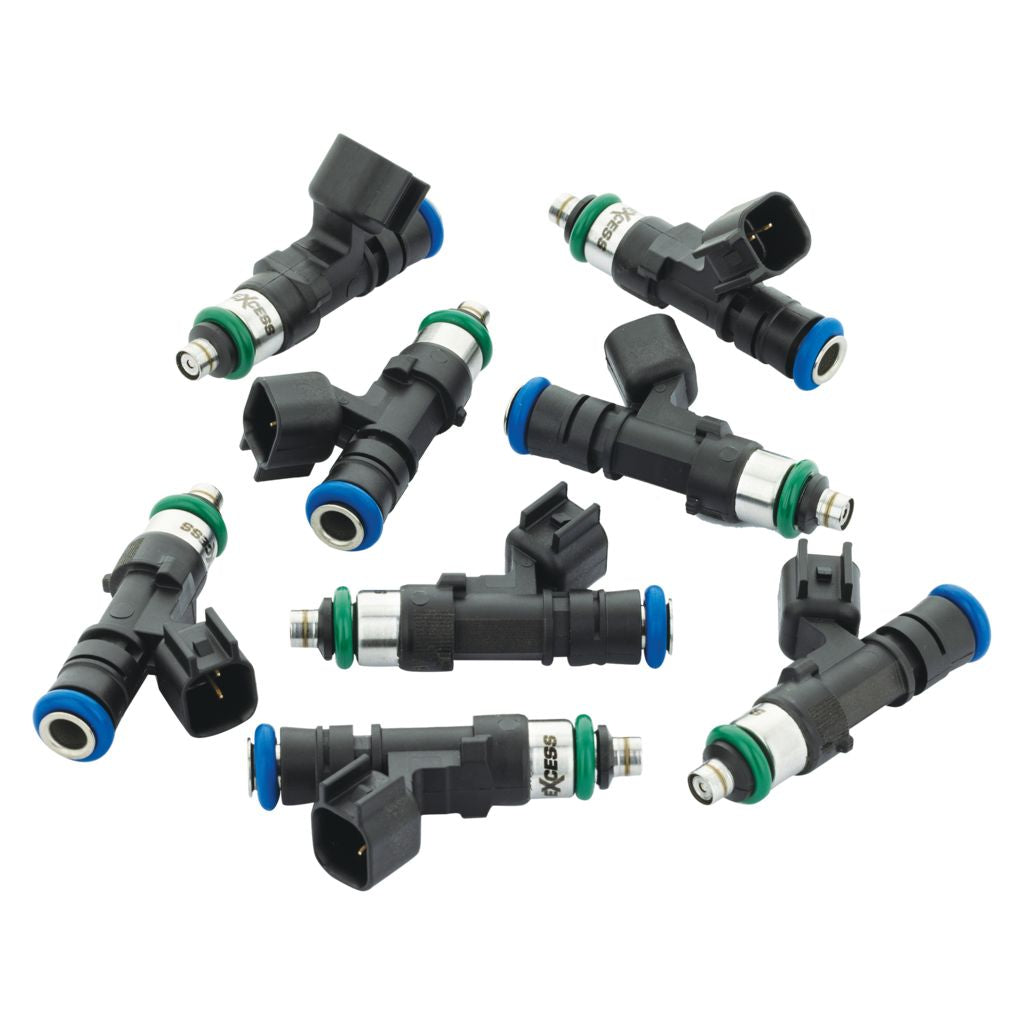

- Sold as a set of 8 (O-rings included)
Lifetime Warranty
Performance parts should be an investment, not a gamble. That's why these 1000cc Cadillac CTS-V - LS2 Fuel Injectors come with a lifetime warranty. If an injector fails due to a manufacturing defect (not contamination or damage), it will be replaced—no questions asked.
Precision-Tuned
Every set of Excess Injectors 1000cc Cadillac CTS-V - LS2 Fuel Injectors is flow-matched within 1% and deadtime-matched within 2%, ensuring that your engine runs smoothly and efficiently. Unlike generic injectors, these come with Exact Match Data, meaning the tuning files are customized to the exact performance of your specific injectors—no guessing, no wasted dyno time.
- Tune files available for 11 different ECUs
- Over 6,500 flow points tested per injector
- 265,000+ data points recorded for precise matching
- Stored on a cloud server—access your injector data anytime
Testing & Quality Control
Not all fuel injectors are tested equally. Excess Injectors use J1832-standard testing on a custom-built test bench, ensuring every injector performs consistently.
✔ Electronically controlled 3-bar pressure
✔ Temperature-regulated at 21°C
✔ Voltage-controlled at 14V
✔ Guaranteed consistent results every time
With stainless steel internals, these injectors are built to last and are compatible with all fuel types, including ethanol-based fuels.
Fuel Compatibility
All Fuel - stainless steel internals
Make
Model
Injector CC Rating
Testing Pressure (bar)
3
Coil Resistance
12 ohms
Injector Plug Style
USCAR
Internals
Stainless steel internals
Injector Height (O-Ring to O-Ring)
55mm - 2.17"
Top O-Ring Outside Diameter
14mm - 0.55"
Manifold O-Ring Outside Diameter
Quantity
Sold as a set of 8
O-Rings Included
Yes
Wiring Harness Included
Not Required
Height Extensions Included
Not Required
Tuning Data Included
Yes - Exact Match Data
Access to Testing Data
Yes
